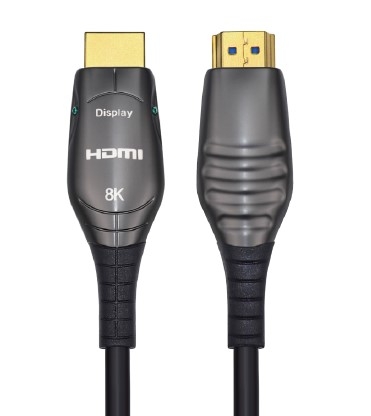

Premium High Speed HDMI® Cable 4K (Micro HDMI) Active Optical Cable (AOC)
Optical Fiber HDMI Cable Series
Ultra High Speed HDMI® Cable (8K) Active Optical Cable (AOC) M to M
Optical Fiber HDMI Cable Series
Extend HDMI up to 200M over fiber optics
Plug and play, no external power supply or signal amplifier
Compliant to link with all HDMI A-type connectors
Low power consumption
Longer, thinner cable without EMI/RFI emissions
Compliant with Premium High Speed HDMI® Cable (4K) and Ultra High Speed HDMI® Cable (8K)
48Gbps bandwidth and 8K@60HZ Resolution
Type A to Type A
CE/FCC Compliant
An HDMI active optical cable (AOC) is used to extend the transmission distance between data sources and display devices. The transmission distance can be up to 300M (maximum up to 200m for Ultra High Speed HDMI® Cable) through a hybrid cable consisting of optical fibers and copper wires. The high-speed TMDS signals are transmitted through the optical multimode fibers, while the low-frequency control signals are transmitted through the copper wire. With an advanced optical engine embedded, it is feasible to connect any HDMI devices, such as Blu-ray, projectors, gaming consoles, computers, and so on, to deliver a high-quality display. Our cable assembly lines are capable of producing any optical fiber cable in large numbers and on time for our clients.
It is UL and RoHS compliant and HDMI Certified with Confirmation of HDMI ATC Testing.
When it is about cables, it has to be SUNCA.
Specifications
Plug and Play, no need for external power supply or signal amplifier
Support 48Gbps Bandwidth
Support Resolution
8K@60Hz，4K@120Hz
Cable Material
OM3 Fiber Core - 4 core + 7 core Copper Wire with Kevlar/Ballistic Nylon (Customizable)
Cable Diameter
OD 4.2mm or 4.8mm (Customizable)
Cable Jacket
Flame Retardant PVC (Cl2 / Cl3 / Other CMP Level) or TPE Jacket (Customizable)
8. Support
HDR，eARC, and QFT、HD Dolby 7.1 and Dolby Atmos, etc
9. Power Consumption
110mW
10. Cable Length
Maximum 200m, Customizable Length, e.g: 10m/30m/50m/100m, etc
Certifications
Product Application & Domain
- Blu-ray Player
- PC, Laptop
- TV, Monitor
- Gaming Console, Projector
- Security Camera
- Home Theatre
- Conference Room
- Classroom
- Outdoor Advertisement Signs
Customization Service
客製化服務
我們提供全方位 OEM/ODM 客製化服務，從規格討論到量產出貨，全程專業工程團隊陪同。可客製項目包含：線材長度、外被材質與顏色、連接器類型與品牌指定、屏蔽設計與阻抗規格、印字、包裝與標籤、特殊認證需求（車規、醫療等）。
STEP
01
需求評估與
技術對接
規格解析 可行性評估 初步報價
STEP
02
工程設計與
圖面確認
2D/3D 繪圖 材料選型 客製化提案
STEP
03
快速打樣與
性能測試
樣品製作 電氣與物理 特性驗證
STEP
04
試產與
製程優化
小批量試產 良率分析 治具與模具調整
STEP
05
規模量產與
全球交貨
標準化生產 出貨檢驗 物流安排
Related Category
相關產品
Know more Contact us.
If you need a custom solution or have any inquiries about our products, please feel free to contact us.
